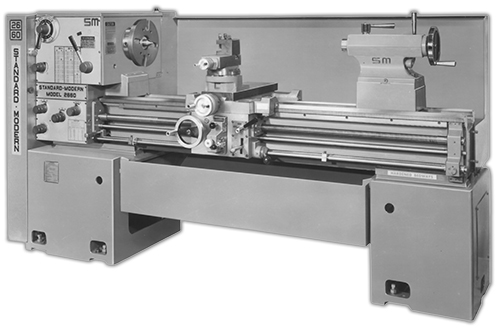

MACHINE Designed for future The "complete" Inch-Metric lathe Computer designed - dynamically tested Electric brake - self actuating | Swing over Bed Swing over Bed and Saddle Wings Swing over Cross-Slide Distance between Centers Main Drive Motor Bar Capacity |
28 in. (709mm) 26 in. (658mm) 18 in. (463mm) 30,40,60,80,120" (750,1000,1500,2000,3000mm) 10 H.P. (7.46 K.W.) 3.0 in. (76mm) |
| HEADSTOCK All hardened gears - no clutches D1-8 " three bearing spindle Direct reading speed dial Convenient Hi-Lo Neutral shifter |
Spindle speeds Geometric speed range Spindle nose - camlock Through hole in spindle Spindle center |
18 17-1000 RPM D1-8" 3.06" (77.7mm) #5 M.T. |
| FEEDBOX Complete range of inch and metric threads - switchable Exclusive "dial in" feeds under power Fully totally enclosed No transposing gears |
Feed & thread selections Inch feed range Inch thread range Metric feed range Metric lead range |
66 .0015-.105 in./rev. 2 to 127 TPI .04 to 2.67 mm/rev. .2 to 14 mm |
| APRON Double walled - left side handwheel Feed reverse Landscrew reverse Bi-direction auto carriage stop (feeds and threads) |
Handwheel - one revolution Half nuts High Speed threading to Repeatability of auto carriage stop Feed torque control |
1.000 in. (25.4mm) Double 800 RPM ± .005 in. (±.13mm) Variable |
| CARRIAGE CROSS-SLIDE One shot lube to carriage and cross slide Combination Inch-Metric dials Extended cross-slide for tracer mount Ball chasing stop Nitrided screw - anti-backlash nuts |
Carriage length on bed Carriage bridge width Cross-slide length Cross-slide travel Compound travel Direct reading dial graduation |
21" (533 mm) 10" (254 mm) 24" (610 mm) 12" (305 mm) 5" (127 mm) .001 in. (.02mm) |
| TAILSTOCK Heavy duty - quick double clamping Hardened quill with tang drive Auto center eject - non locking handwheel |
Quill diameter Quill travel Morse taper with tang Offset |
2.94 in. (75mm) 8" (203 mm) #5 M.T. ± .75 in. (± 19mm) |
| BED & BASE Grade 'A' meehanite Hardened ways - full length Deep bed design Chip clean out - front & rear |
Bed Width Bed Depth Bed length Base width Base length |
14 in. (356mm) 12-1/2 in. (318mm) 104,124,164 in. (2642,3150,4166mm) 30 in. (762mm) 114,134,174 in. (2896,3404,4420mm) |
| STANDARD EQUIPMENT Full length rear splash guard 10 in. (254 mm) dia dogplate Square block toolpost 2 - #5 M.T. dead centers 1 - #5 M.T. spindle sleeve Wrenches, keys, spare pins |
Standard 115V electronic controls (208, 230/460 or 575 volt supply) Operators handbook Inspection report 2 year warranty on Standard-Modern parts Paint - Machine Tool Grey ( E792) or Vista Green ( E808) |
|
| OPTIONAL ACCESSORIES Telescopic Taper Attachment - ± 10 deg x 16 " (406mm) stroke Steady Rest - 6 " (152mm) dia.plain or roller Two speed tailstock Large toolmakers faceplate - 18" (450mm) dia. |
Coolant System 3&4 Jaw and Collet chucks Turret toolpost Micrometer Carriage Stop - inch or metric. |
J.I.C. electronics, etc. Live centers Inch threading dial |
| SHIPPING DATA 26/60: Wt . 5500 lbs. (2495 kg.) approx Crate: 56" W x 126" L x 65" H ( 1.4 m x 3.2m x 1.7 m) 26/80: Wt. 7400 lbs. (3357 kg.) approx Crate: 56" W x 146" L 65" H ( 1.4m x 3.7 m x 1.7 m) 26/120: Wt. 7900 lbs. (3583 kg.) approx Crate: 56" W x 186" L 65" H ( 1.4m x 4.7 m x 1.7 m) |
||
